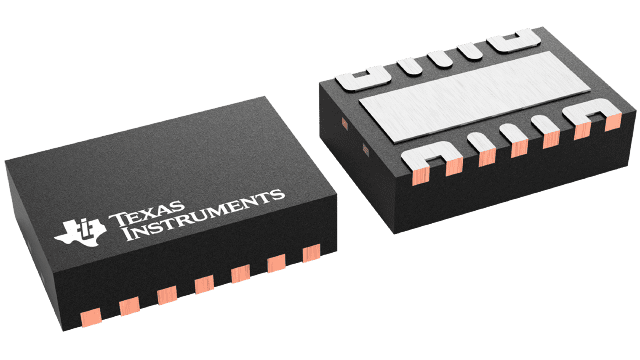

TPS22966DPUT Texas Instruments - Yeehing Electronics

2-ch, 5.5-V, 6-A, 16-mΩ, load switch with adj. rise time and output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.711
100 — 249	0.547
250 — 999	0.403
1,000 +	0.17

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	2 Output
Current Limit	6 A
On Resistance - Max	16 mOhms
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT
Package / Case	WSON-14
Series	TPS22966
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	250
Subcategory	Switch ICs
Unit Weight	0.000649 oz

For more information, please refer to datasheet

Documents

TPS22966DPUT Datasheet

More Information

The TPS22966 is a small, low RON, dual-channel load switch with controlled turnon. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8 V to 5.5 V and can support a maximum continuous current of 6 A per channel. Each switch is independently controlled by an on and off input (ON1 and ON2), which can interface directly with low-voltage control signals. In TPS22966, a 220-Ω on-chip load resistor is added for quick-output discharge when switch is turned off.
