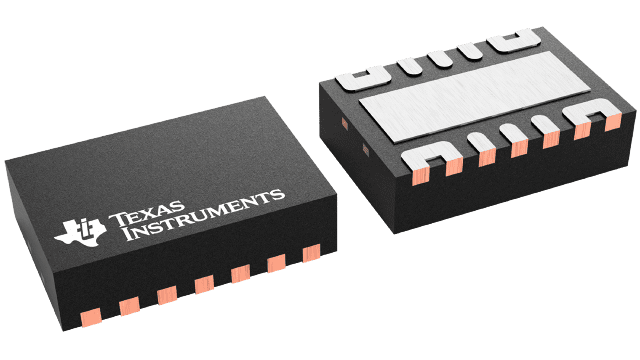

TPS22966TDPURQ1 Texas Instruments - Yeehing Electronics
2-ch, 5.5-V, 16-mΩ, automotive load switch with adj. rise time and output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.095 |
| 100 — 249 | 0.905 |
| 250 — 999 | 0.65 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 2 Output |
| Output Current | 4 A |
| Current Limit | 4 A |
| On Resistance - Max | 16 mOhms |
| Operating Supply Voltage | 800 mV to 5.5 V |
| Supply Voltage - Min | 800 mV |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-14 |
| On Time - Max | 1559 us |
| Off Time - Max | 6 us |
| Series | TPS22966-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000540 oz |
For more information, please refer to datasheet
Documents
| TPS22966TDPURQ1 Datasheet |
More Information
The TPS22966-Q1 device is a small, ultralow RON, dual-channel load switch with adjustable rise time. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0 V to 5.5 V and can support a maximum continuous current of up to 4 A per channel. Each switch is independently controlled by an on/off input (ON1 and ON2), which can interface directly with low-voltage control signals. The TPS22966-Q1 includes a 230-Ω on-chip resistor for quick output discharge when the switch is turned off.
