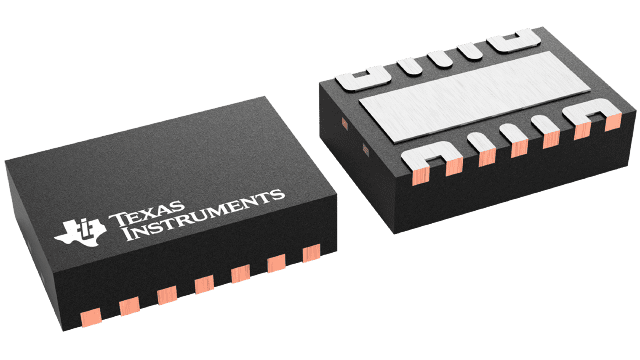

TPS22966TDPUTQ1

TPS22966TDPUTQ1

Regular price $0.40 USD
Regular price Sale price $0.40 USD
Sale Sold out
YeeHing #
Inventory

TPS22966TDPUTQ1 Texas Instruments - Yeehing Electronics

2-ch, 5.5-V, 16-mΩ, automotive load switch with adj. rise time and output discharge

Pricing (USD)

Quantity Unit Price
1 — 99 1.279
100 — 249 1.056
250 — 999 0.759
1,000 + 0.40

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS N
Type High Side
Number of Outputs 2 Output
Current Limit 4 A
On Resistance - Max 16 mOhms
Supply Voltage - Max 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Mounting Style SMD/SMT
Package / Case WSON-14
Series TPS22966-Q1
Qualification AEC-Q100
Packaging Reel
Product Load Switches
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 250
Subcategory Switch ICs

For more information, please refer to datasheet

Documents

TPS22966TDPUTQ1 Datasheet

More Information

The TPS22966-Q1 device is a small, ultralow RON, dual-channel load switch with adjustable rise time. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0 V to 5.5 V and can support a maximum continuous current of up to 4 A per channel. Each switch is independently controlled by an on/off input (ON1 and ON2), which can interface directly with low-voltage control signals. The TPS22966-Q1 includes a 230-Ω on-chip resistor for quick output discharge when the switch is turned off.
