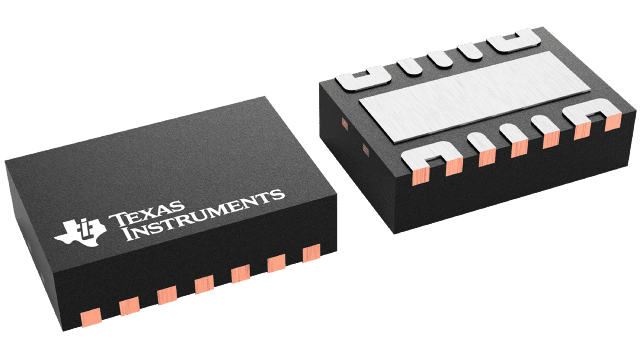

TPS22968DPUR Texas Instruments - Yeehing Electronics

2-ch, 5.5-V, 4-A, 25-mΩ load switch with adj. rise time and output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.687
100 — 249	0.528
250 — 999	0.389
1,000 +	0.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	2 Output
Output Current	4 A
Current Limit	4 A
On Resistance - Max	27 mOhms
Operating Supply Voltage	800 mV to 5.5 V
Supply Voltage - Min	800 mV
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Mounting Style	SMD/SMT
Package / Case	WSON-14
On Time - Max	1128 us
Off Time - Max	5 us
Series	TPS22968
Packaging	Reel
Product	Load Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000533 oz

For more information, please refer to datasheet

Documents

TPS22968DPUR Datasheet

More Information

The TPS22968x is a small, ultra-low RON, dual-channel load switch with controlled turn on. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8 to 5.5 V and can support a maximum continuous current of
