Texas Instruments
TPS22968NDPUT
TPS22968NDPUT
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability

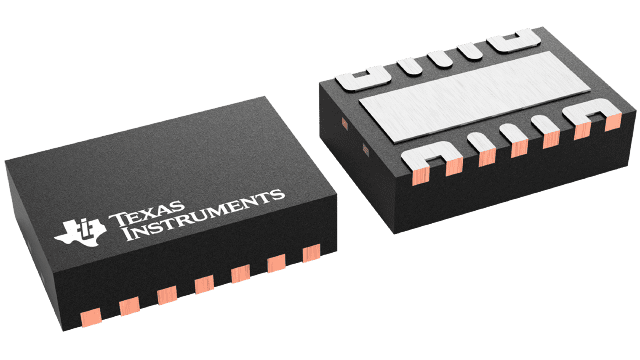

TPS22968NDPUT Texas Instruments - Yeehing Electronics
2-ch, 5.5-V, 4-A, 25-mΩ load switch with adj. rise time and output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.892 |
| 100 — 249 | 0.686 |
| 250 — 999 | 0.505 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 2 Output |
| Output Current | 4 A |
| Current Limit | 4 A |
| On Resistance - Max | 42 mOhms |
| Operating Supply Voltage | 800 mV to 5.5 V |
| Supply Voltage - Min | 800 mV |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-14 |
| On Time - Max | 1.128 ms |
| Off Time - Max | 5 us |
| Series | TPS22968 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 250 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000533 oz |
For more information, please refer to datasheet
Documents
| TPS22968NDPUT Datasheet |
More Information
The TPS22968x is a small, ultra-low RON, dual-channel load switch with controlled turn on. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8 to 5.5 V and can support a maximum continuous current of
