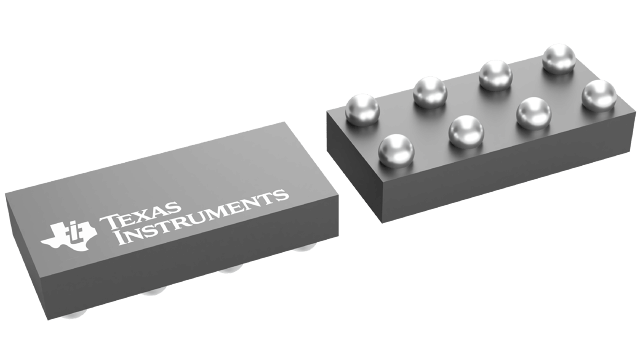

TPS22970YZPR Texas Instruments - Yeehing Electronics
3.6-V, 4-A, 4.7-mΩ load switch with output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.453 |
| 100 — 249 | 0.308 |
| 250 — 999 | 0.238 |
| 1,000 + | 0.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | Load Switch |
| Number of Outputs | 1 Output |
| Current Limit | 4 A |
| On Resistance - Max | 14.5 mOhms |
| Operating Supply Voltage | 0.65 V to 3.6 V |
| Supply Voltage - Min | 0.65 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| On Time - Max | 1530 us |
| Off Time - Max | 61 us |
| Series | TPS22970 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Development Kit | TPS22970EVM |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000046 oz |
For more information, please refer to datasheet
Documents
| TPS22970YZPR Datasheet |
More Information
The TPS22970 is a small, space-saving load switch with controlled Turn-ON to reduce inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.65 V to 3.6 V and pulsed switch currents up to 4 A. An integrated charge pump biases the NMOS switch in order to achieve a minimum switch ON resistance (RON). The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals.
