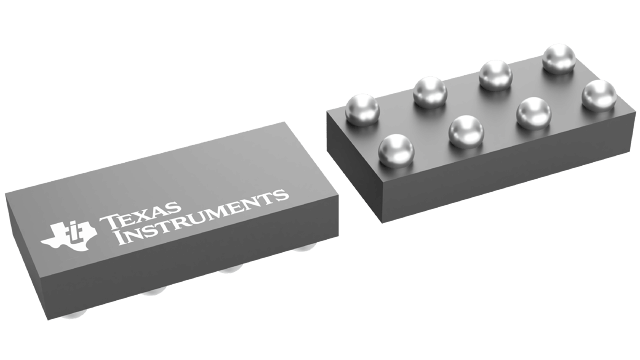

TPS22970YZPT Texas Instruments - Yeehing Electronics
3.6-V, 4-A, 4.7-mΩ load switch with output discharge
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.884 |
100 — 249 | 0.68 |
250 — 999 | 0.501 |
1,000 + | 0.25 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Switch ICs - Power Distribution |
RoHS | Y |
Type | Load Switch |
Number of Outputs | 1 Output |
Current Limit | 4 A |
On Resistance - Max | 14.5 mOhms |
Operating Supply Voltage | 0.65 V to 3.6 V |
Supply Voltage - Min | 0.65 V |
Supply Voltage - Max | 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-8 |
On Time - Max | 1530 us |
Off Time - Max | 61 us |
Series | TPS22970 |
Packaging | Reel |
Product | Load Switches |
Brand | Texas Instruments |
Development Kit | TPS22970EVM |
Product Type | Power Switch ICs - Power Distribution |
Factory Pack Quantity | 250 |
Subcategory | Switch ICs |
Unit Weight | 0.000046 oz |
For more information, please refer to datasheet
Documents
TPS22970YZPT Datasheet |
More Information
The TPS22970 is a small, space-saving load switch with controlled Turn-ON to reduce inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.65 V to 3.6 V and pulsed switch currents up to 4 A. An integrated charge pump biases the NMOS switch in order to achieve a minimum switch ON resistance (RON). The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals.
