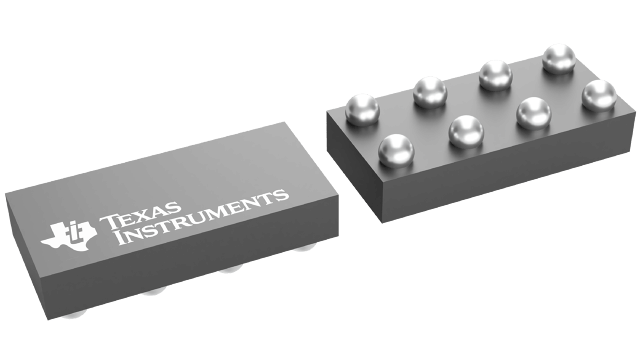

TPS22971YZPR Texas Instruments - Yeehing Electronics

3.6-V, 3-A, 6.7-mΩ load switch with adj. rise time, power good, and output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.33
100 — 249	0.224
250 — 999	0.173
1,000 +	0.08

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS22971YZPR Datasheet

More Information

The TPS22971 is a space-saving single-channel load switch with controlled and adjustable turn-on slew rate and an integrated power good indicator. the device contains an n-channel mosfet that can operate over a low input voltage range of 0.65 v to 3.6 V and can support a maximum continuous current of 3 A. A low on-resistance of 6.7-mΩ minimizes the power loss and voltage drop across the load switch. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals.
