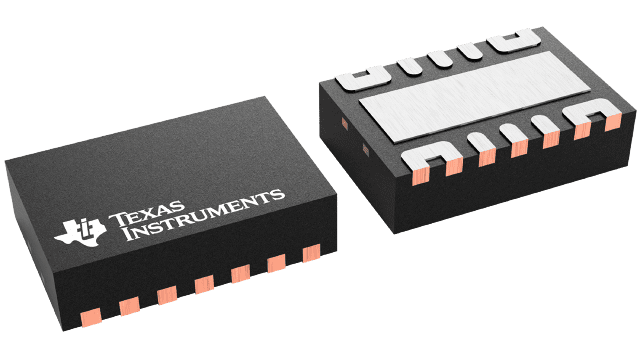

TPS22976ADPUR Texas Instruments - Yeehing Electronics

2-ch, 5.7-V, 6-A, 14-mΩ, load switch with adj. rise time and optional output discharge

Pricing (USD)

Quantity	Unit Price
1 — 99	0.465
100 — 249	0.316
250 — 999	0.244
1,000 +	0.11

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS22976ADPUR Datasheet

More Information

The TPS22976 product family consists of three devices: TPS22976, TPS22976A and TPS22976N. Each device is a dual-channel load switch with controlled turnon. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.6 V to 5.7 V, and can support a maximum continuous current of 6 A per channel. Each switch is independently controlled by an on and off input (ON1 and ON2), which can interface directly with low-voltage control signals. The TPS22976 is capable of thermal shutdown when the junction temperature is above the threshold, turning the switch off. The switch turns on again when the junction temperature stabilizes to a safe range. The TPS22976 also offers an optional integrated 230-Ω on-chip load resistor for quick output discharge when the switch is turned off.
