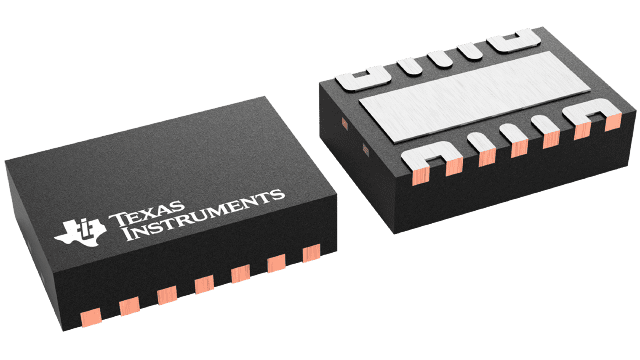

TPS22976DPUR


YeeHing #: Y012-TPS22976DPUR
Inventory: 6000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS22976DPUR Texas Instruments - Yeehing Electronics

2-ch, 5.7-V, 6-A, 14-mΩ, load switch with adj. rise time and optional output discharge

Pricing (USD)

Quantity Unit Price
1 — 99 0.465
100 — 249 0.316
250 — 999 0.244
1,000 + 0.11

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Type High Side
Number of Outputs 2 Output
Output Current 6 A
Current Limit 6 A
On Resistance - Max 23 mOhms
Operating Supply Voltage 600 mV to 5.7 V
Supply Voltage - Min 600 mV
Supply Voltage - Max 5.7 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Mounting Style SMD/SMT
Package / Case WSON-14
On Time - Max 1.49 ms
Off Time - Max 3 us
Series TPS22976
Packaging Reel
Product Load Switches
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 3000
Subcategory Switch ICs
Unit Weight 0.000638 oz

For more information, please refer to datasheet

Documents

TPS22976DPUR Datasheet

More Information

The TPS22976 product family consists of three devices: TPS22976, TPS22976A and TPS22976N. Each device is a dual-channel load switch with controlled turnon. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.6 V to 5.7 V, and can support a maximum continuous current of 6 A per channel. Each switch is independently controlled by an on and off input (ON1 and ON2), which can interface directly with low-voltage control signals. The TPS22976 is capable of thermal shutdown when the junction temperature is above the threshold, turning the switch off. The switch turns on again when the junction temperature stabilizes to a safe range. The TPS22976 also offers an optional integrated 230-Ω on-chip load resistor for quick output discharge when the switch is turned off.
