Texas Instruments

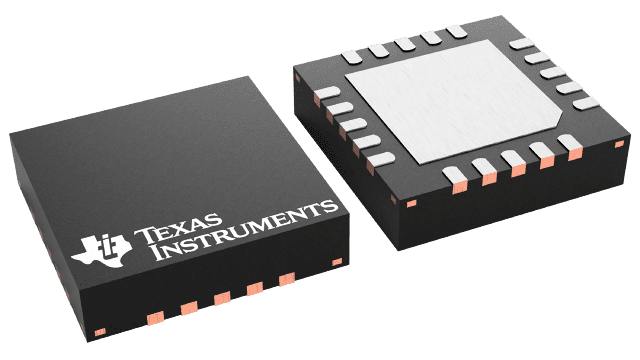

TPS22980RGPR
TPS22980RGPR
Regular price
$0.61 USD
Regular price
Sale price
$0.61 USD
Unit price
per
Couldn't load pickup availability
TPS22980RGPR Texas Instruments - Yeehing Electronics
Thunderbolt Host/Peripheral Power Multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.151 |
| 100 — 249 | 1.885 |
| 250 — 999 | 1.322 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Number of Outputs | 1 Output |
| Current Limit | 1.635 A |
| On Resistance - Max | 250 mOhms |
| Operating Supply Voltage | 4.5 V to 19.8 V |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 19.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Series | TPS22980 |
| Packaging | Reel |
| Product | Power Switches |
| Brand | Texas Instruments |
| Development Kit | TPS22980EVM |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.001630 oz |
For more information, please refer to datasheet
Documents
| TPS22980RGPR Datasheet |
More Information
The TPS22980 is a current-limited power mux providing a connection to a peripheral device from either a low voltage supply (3.0V up to 3.6V) or a high voltage supply (5V up to 18V). The desired output is selected by digital control signals.
