Texas Instruments
TPS22990NDMLR
TPS22990NDMLR
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability

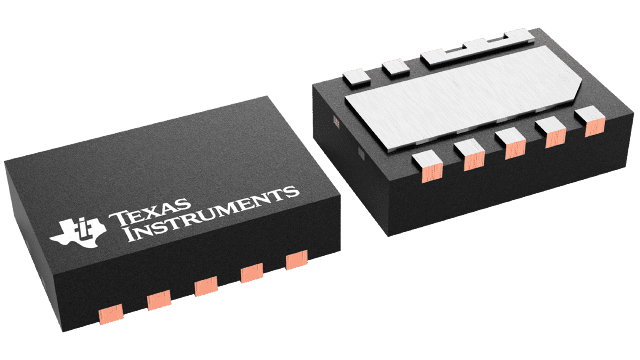

TPS22990NDMLR Texas Instruments - Yeehing Electronics
5.5-V, 10-A, 3.9-mΩ load switch with adj. rise time, power good and optional output discharge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.659 |
| 100 — 249 | 0.507 |
| 250 — 999 | 0.374 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Output Current | 10 A |
| Current Limit | 10 A |
| On Resistance - Max | 3.9 mOhms |
| Operating Supply Voltage | 5.5 V |
| Supply Voltage - Min | 600 mV |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| On Time - Max | 34 us |
| Off Time - Max | 9.4 us |
| Series | TPS22990 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000286 oz |
For more information, please refer to datasheet
Documents
| TPS22990NDMLR Datasheet |
More Information
The TPS22990 product family consists of two devices: TPS22990 and TPS22990N. Each device is a 3.9-mΩ, single-channel load switch with a controlled and adjustable turn on and integrated PG indicator.
