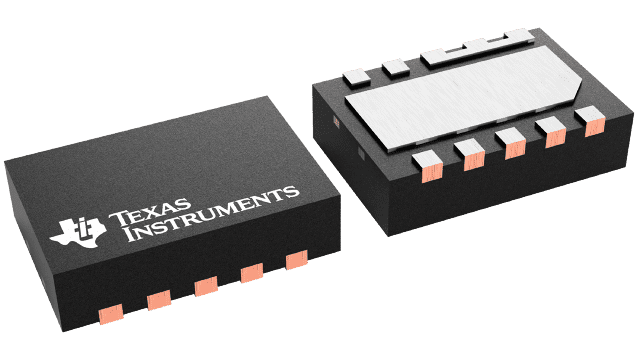

TPS22990NDMLT


YeeHing #: Y012-TPS22990NDMLT
Inventory: 156000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS22990NDMLT Texas Instruments - Yeehing Electronics

5.5-V, 10-A, 3.9-mΩ load switch with adj. rise time, power good and optional output discharge

Pricing (USD)

Quantity Unit Price
1 — 99 0.99
100 — 249 0.762
250 — 999 0.561
1,000 + 0.32

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Power Switch ICs - Power Distribution
RoHS Y
Type High Side
Number of Outputs 1 Output
Output Current 10 A
Current Limit 10 A
On Resistance - Max 6 mOhms
Operating Supply Voltage 5.5 V
Supply Voltage - Min 600 mV
Supply Voltage - Max 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Mounting Style SMD/SMT
Package / Case WSON-10
On Time - Max 34 us
Off Time - Max 9.4 us
Series TPS22990
Packaging Reel
Product Load Switches
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Power Switch ICs - Power Distribution
Factory Pack Quantity 250
Subcategory Switch ICs
Unit Weight 0.000286 oz

For more information, please refer to datasheet

Documents

TPS22990NDMLT Datasheet

More Information

The TPS22990 product family consists of two devices: TPS22990 and TPS22990N. Each device is a 3.9-mΩ, single-channel load switch with a controlled and adjustable turn on and integrated PG indicator.
