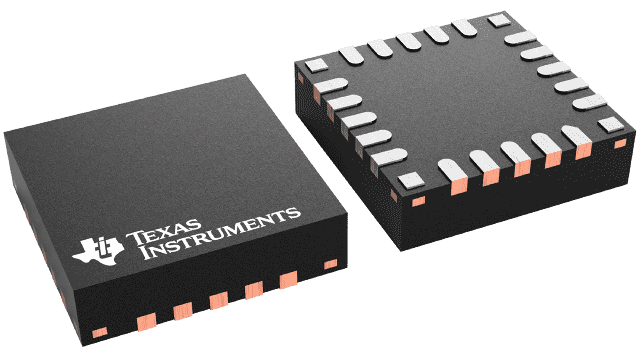

Texas Instruments
TPS22993RLWR
TPS22993RLWR
Regular price
$0.42 USD
Regular price
Sale price
$0.42 USD
Unit price
per
Couldn't load pickup availability
TPS22993RLWR Texas Instruments - Yeehing Electronics
4-ch, 3.6-V, 1.2-A, 15-mΩ load switch with I2C control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.337 |
| 100 — 249 | 1.104 |
| 250 — 999 | 0.793 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 4 Output |
| Output Current | 1.2 A |
| Current Limit | 1.2 A |
| On Resistance - Max | 28 mOhms |
| Operating Supply Voltage | 1 V to 3.6 V |
| Supply Voltage - Min | 1 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-20 |
| On Time - Max | 1481 us |
| Off Time - Max | 2 us |
| Series | TPS22993 |
| Packaging | Reel |
| Product | Load Switches |
| Brand | Texas Instruments |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000557 oz |
For more information, please refer to datasheet
Documents
| TPS22993RLWR Datasheet |
More Information
The TPS22993 is a multi-channel, low RON load switch with user programmable features. The device contains four N-channel MOSFETs that can operate over an input voltage range of 1.0V to 3.6V. The switch can be controlled by I2C making it ideal for usage with processors that have limited GPIO available. The rise time of the TPS22993 device is internally controlled in order to avoid inrush current. The TPS22993 has five programmable slew rate options, four ON-delay options, and four quick output discharge (QOD) resistance options.
