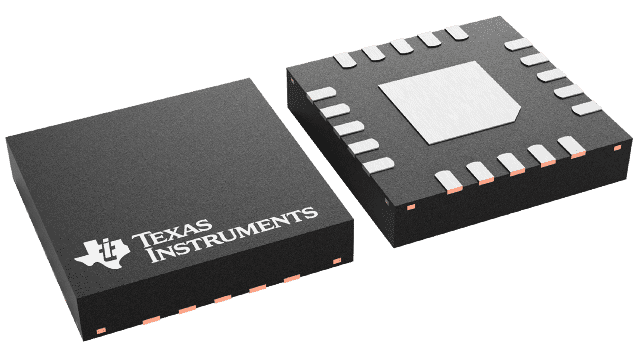

TPS2372-4RGWR Texas Instruments - Yeehing Electronics
IEEE 802.3bt PoE high-power PD interface with automatic MPS & autoclass
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.464 |
| 100 — 249 | 2.159 |
| 250 — 999 | 1.514 |
| 1,000 + | 2.40 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS2372-4RGWR Datasheet |
More Information
The TPS2372 contains all of the features needed to implement an IEEE802.3at or IEEE802.3bt (draft) (Type 1-4) powered device (PD). The low internal switch resistance allows the TPS2372-4 and TPS2372-3 to support high power applications up to 90 W and 60 W respectively. Assuming 100-meter CAT5 cable, this translates into 71.3 W and 51 W at PD input.
