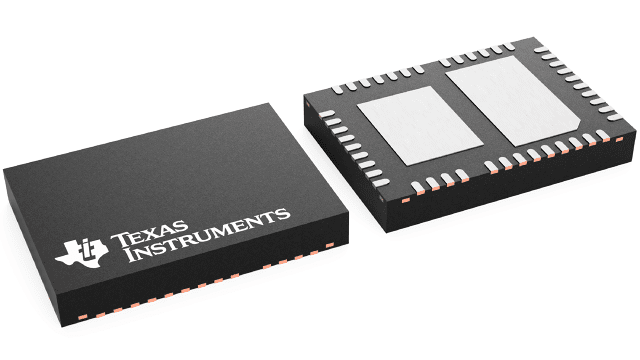

TPS23730RMTR Texas Instruments - Yeehing Electronics

IEEE 802.3bt type-3 class 1-6 PoE 2 PD with high efficiency DC-DC controller

Pricing (USD)

Quantity	Unit Price
1 — 99	3.125
100 — 249	2.738
250 — 999	1.92
1,000 +	1.08

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS23730RMTR Datasheet

More Information

The TPS23730 device combines a Power over Ethernet (PoE) powered device (PD) interface, and a current-mode DC-DC controller optimized for flyback and active clamp forward (ACF) switching regulator designs . In the case of flyback configuration, the use of primary-side regulation (PSR) is supported. The PoE interface supports the IEEE 802.3bt standard for applications needing up to 51 W or less at PD input.
