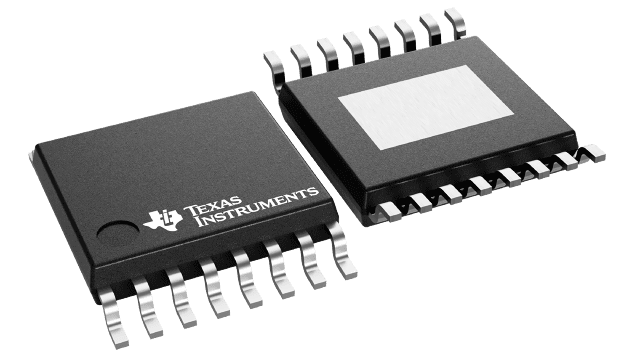

TPS23751PWP Texas Instruments - Yeehing Electronics
IEEE 802.3at PoE interface with flyback DC-DC controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.644 |
| 100 — 249 | 2.317 |
| 250 — 999 | 1.624 |
| 1,000 + | 0.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - POE / LAN |
| RoHS | Y |
| Type | Powered Device - PD |
| Standard | 802.3at |
| Current Limit | 850 mA |
| On Resistance - Max | 750 Ohms |
| Operating Supply Voltage | 0 V to 57 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Packaging | Reel |
| Series | TPS23751 |
| Brand | Texas Instruments |
| Duty Cycle - Max | 85 % |
| Development Kit | TPS23751EVM-104 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 210 uA |
| Product Type | Power Switch ICs - POE / LAN |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| TPS23751PWP Datasheet |
More Information
The TPS23751 is a 16-pin integrated circuit that combines a Power-over-Ethernet (PoE) powered device (PD) interface and a current-mode DC-DC controller optimized specifically for applications requiring high efficiency over a wide load range.
