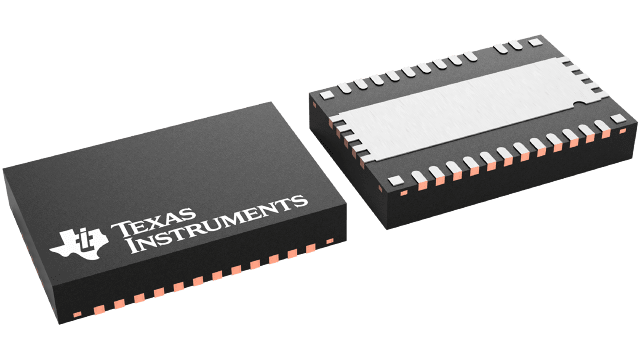

TPS23755RJJR


YeeHing #: Y012-TPS23755RJJR
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS23755RJJR Texas Instruments - Yeehing Electronics

IEEE 802.3at PoE PD with no-opto flyback DC-DC controller

Pricing (USD)

Quantity Unit Price
1 — 99 1.79
100 — 249 1.478
250 — 999 1.062
1,000 + 0.56

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS23755RJJR Datasheet

More Information

The TPS23755 device combines a Power over Ethernet (PoE) powered device (PD) interface, a 150-V switching power FET, and a current-mode DC-DC controller optimized for flyback topology. The high level of integration along with primary side regulation (PSR), spread spectrum frequency dithering (SSFD), and advanced startup makes the TPS23755 an ideal solution for size-constrained applications. The PoE implementation supports the IEEE 802.3at standard as a 13-W, Type 1 PD.
