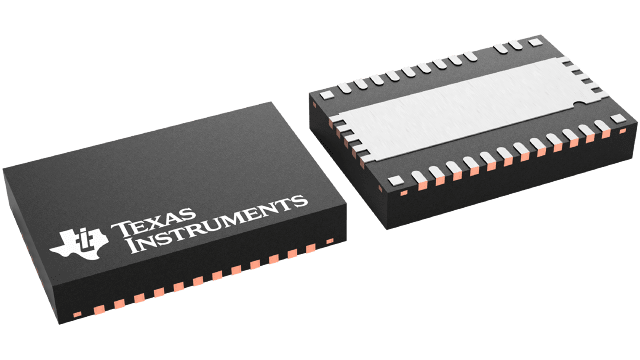

TPS23758RJJT Texas Instruments - Yeehing Electronics

IEEE 802.3at PoE PD with no-opto sync flyback DC-DC controller

Pricing (USD)

Quantity	Unit Price
1 — 99	2.303
100 — 249	2.018
250 — 999	1.415
1,000 +	0.80

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS23758RJJT Datasheet

More Information

The TPS23758 device combines a Power over Ethernet (PoE) powered device (PD) interface, a 150-V switching power FET, and a current-mode DC-DC controller optimized for flyback topology. The high level of integration along with primary side regulation (PSR), spread spectrum frequency dithering (SSFD), and advanced startup makes the TPS23758 an ideal solution for size-constrained applications. The PoE implementation supports the IEEE 802.3at standard as a 13-W, Type 1 PD.
