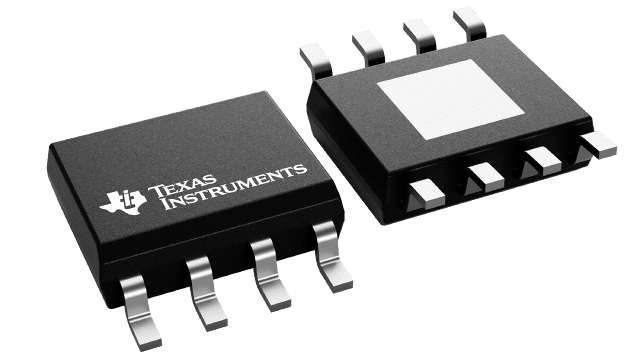

TPS2378DDA Texas Instruments - Yeehing Electronics
IEEE 802.3at PoE High-Power PD interface with AUX Control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.709 |
| 100 — 249 | 1.412 |
| 250 — 999 | 1.014 |
| 1,000 + | 0.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - POE / LAN |
| RoHS | Y |
| Type | Powered Device - PD |
| Standard | 802.3at |
| Current Limit | 850 mA |
| On Resistance - Max | 750 mOhms |
| Operating Supply Voltage | 0 V to 57 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SO-PowerPad-8 |
| Packaging | Reel |
| Output Power | 30 W |
| Series | TPS2378 |
| Brand | Texas Instruments |
| Duty Cycle - Max | 78% |
| Development Kit | TPS2378EVM-105 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 960 uA |
| Product Type | Power Switch ICs - POE / LAN |
| Factory Pack Quantity | 2500 |
| Subcategory | Switch ICs |
| Unit Weight | 0.002490 oz |
For more information, please refer to datasheet
Documents
| TPS2378DDA Datasheet |
More Information
This 8-pin integrated circuit contains all of the features needed to implement an IEEE802.3at type-2 powered device (PD). The low 0.5-Ω internal switch resistance, combined with the enhanced thermal dissipation of the PowerPAD™ package, enables this controller to continuously handle up to 0.85 A. The TPS2378 features an auxiliary power detect (APD) input, providing priority for an external power adapter. It also features a 100-V pass transistor, 140-mA inrush current limiting, type-2 indication, auto-retry fault protection, and an open-drain power-good output.
