TPS2384PJD Texas Instruments - Yeehing Electronics

Type-1 4-Channel PoE PSE with integrated FET & current sense

Pricing (USD)

Quantity	Unit Price
1 — 99	8.327
100 — 249	7.273
250 — 999	5.608
1,000 +	3.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - POE / LAN
RoHS	Y
Type	Power Sourcing Equipment - PSE
Standard	802.3af
Current Limit	450 mA
On Resistance - Max	1.8 Ohms
Operating Supply Voltage	48 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

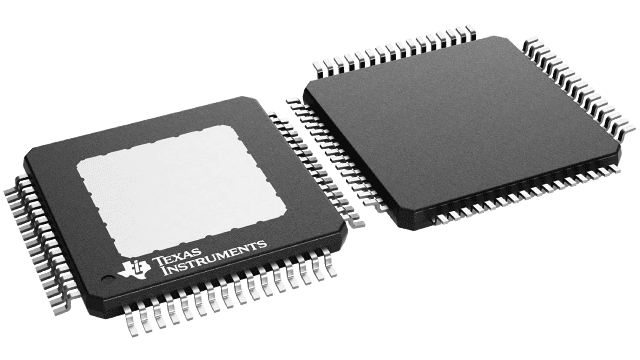

Package / Case	HTQFP-64
Packaging	Tray
Series	TPS2384
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	10 mA
Product Type	Power Switch ICs - POE / LAN
Factory Pack Quantity	160
Subcategory	Switch ICs
Unit Weight	0.008762 oz

For more information, please refer to datasheet

Documents

TPS2384PJD Datasheet

More Information

The TPS2384 is a quad-port power sourcing equipment power manager (PSEPM) and is compliant to the Power-over-Ethernet (PoE) IEEE 802.3af standard. The TPS2384 operates from a single 48-V supply and over a wide temperature range (–40°C to 125°C). The integrated output eliminates two external components per port (FET and sense resistor) and survives 100-V transients. Four individual 15-bit A/D converters are used to measure port resistance, voltage, current and die temperature making PSE solutions simple and robust. The TPS2384 comes with a comprehensive software solution to meet the most demanding applications which can serve as a core for all PoE system designs.
