Texas Instruments

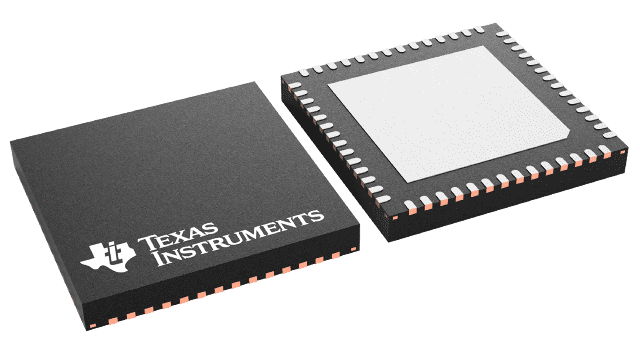

TPS2388RTQR
TPS2388RTQR
Regular price
$2.16 USD
Regular price
Sale price
$2.16 USD
Unit price
per
Couldn't load pickup availability
TPS2388RTQR Texas Instruments - Yeehing Electronics
2-pair, type-2, 8-channelxa0PoExa0PSE
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.667 |
| 100 — 249 | 4.62 |
| 250 — 999 | 3.631 |
| 1,000 + | 2.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - POE / LAN |
| RoHS | Y |
| Type | Power Sourcing Equipment - PSE |
| Standard | 802.3at |
| On Resistance - Max | - |
| Operating Supply Voltage | 48 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-56 |
| Packaging | Reel |
| Series | TPS2388 |
| Brand | Texas Instruments |
| Development Kit | TPS2388EVM-612 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA |
| Product Type | Power Switch ICs - POE / LAN |
| Factory Pack Quantity | 2000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.006057 oz |
For more information, please refer to datasheet
Documents
| TPS2388RTQR Datasheet |
More Information
The TPS2388 is an 8-channel power source equipment (PSE) controller engineered to insert power onto Ethernet cable according to IEEE 802.3at-2012 standard (or 802.3at). The PSE controller can detect powered devices (PDs) that have a valid signature, determine the power requirements according to the classification, and apply power through either one (Type -1) or two-event (Type-2) physical classification. The TPS2388 also has the flexibility to support UPoE and other non-standard loads.
