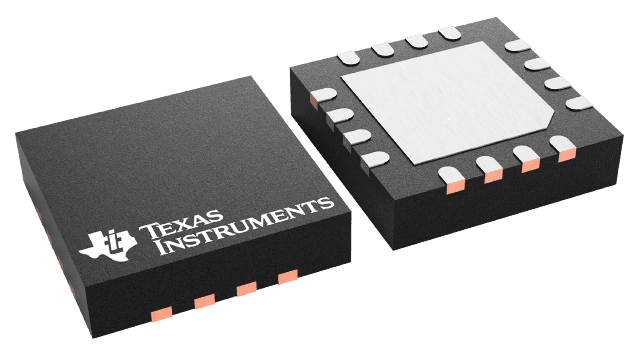

TPS2420RSAT Texas Instruments - Yeehing Electronics
3-V to 20-V, 30mΩ, 1-5A eFuse
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.666 |
100 — 249 | 2.336 |
250 — 999 | 1.638 |
1,000 + | 0.92 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Hot Swap Voltage Controllers |
RoHS | Y |
Product | Controllers & Switches |
Current Limit | 5 A |
Supply Voltage - Max | 20 V |
Supply Voltage - Min | 3 V |
Number of Channels | 1 Channel |
Operating Supply Current | 5 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | QFN-16 |
Packaging | Reel |
Power Fail Detection | Yes |
Description/Function | 3 V to 20 V integrated FET 0 A to 5 A dual fault threshold hot swap with load current monitoring |
Operating Temperature Range | - 40 C to + 125 C |
Series | TPS2420 |
Type | Positive Voltage |
Brand | Texas Instruments |
Input / Supply Voltage - Max | 20 V |
Input / Supply Voltage - Min | 3 V |
Overvoltage Threshold | No Overvoltage Threshold |
Undervoltage Threshold | No Undervoltage Threshold |
Development Kit | TPS2420EVM-01 |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3 V to 20 V |
Product Type | Hot Swap Voltage Controllers |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.001623 oz |
For more information, please refer to datasheet
Documents
TPS2420RSAT Datasheet |
More Information
The TPS2420 device provides highly integrated load protection for applications up to 20-V. The maximum UV turn-on threshold of 2.9 V makes the TPS2420 well suited to standard bus voltages as low as 3.3 V. The TPS2420 device protects loads, minimizes inrush current, and safely shuts down in the event of a fault. The programmable fault current threshold starts the fault timer while allowing the current to pass to the load uninhibited. The programmable current limit threshold sets the maximum current allowed into the load, for both inrush and severe load faults. Both events use the programmable timer which inhibits all current to the load when it expires.
