Texas Instruments
TPS2505B1RGWR
TPS2505B1RGWR
Regular price
$0.80 USD
Regular price
Sale price
$0.80 USD
Unit price
per
Couldn't load pickup availability

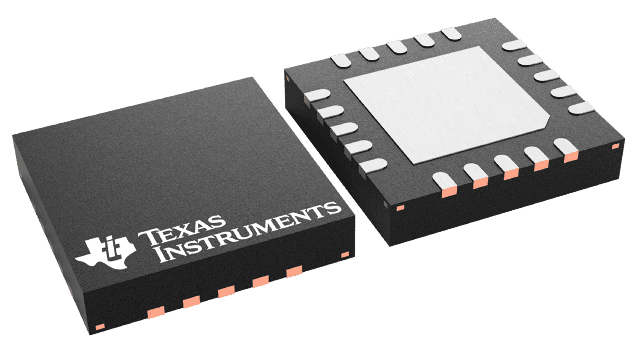

TPS2505B1RGWR Texas Instruments - Yeehing Electronics
0.1-1.1A adj. ILIMIT, 1.8-5.25V, 80mΩ USB power switch + 5.1V 1.1A boost converter & 0.2A 3.3V LDO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.311 |
| 100 — 249 | 2.025 |
| 250 — 999 | 1.42 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 2 Output |
| Current Limit | 1.1 A |
| On Resistance - Max | 80 mOhms |
| Operating Supply Voltage | 1.8 V to 5.25 V |
| Supply Voltage - Min | 1.8 V |
| Supply Voltage - Max | 5.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-20 |
| Series | TPS2505 |
| Packaging | Reel |
| Product | USB Power Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.001630 oz |
For more information, please refer to datasheet
Documents
| TPS2505B1RGWR Datasheet |
More Information
The TPS2505 device provides an integrated solution to meet USB 5-V power requirements from a 1.8-V to 5.25-V input supply. The features include a 5.1-V, 1100-mA boost converter, a 200-mA, 3.3-V LDO linear regulator and dual USB 2.0 compliant power outputs with independent output switch enable, current limit, and overcurrent fault reporting.
