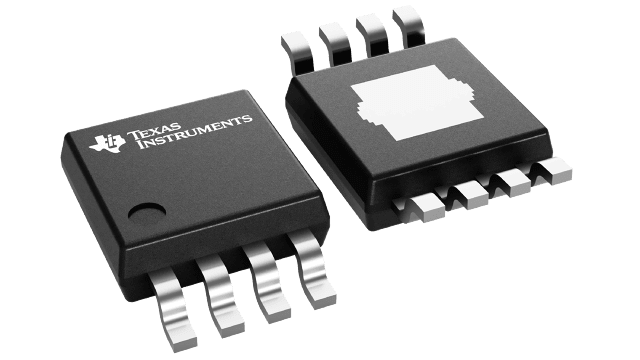

TPS2511DGNR Texas Instruments - Yeehing Electronics
USB dedicated charging port controller and 2.2A power switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.753 |
| 100 — 249 | 0.58 |
| 250 — 999 | 0.427 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Output Current | 2.7 A |
| Current Limit | 2.7 A |
| On Resistance - Max | 70 mOhms |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Series | TPS2511 |
| Packaging | Reel |
| Product | USB Power Switches |
| Brand | Texas Instruments |
| Development Kit | TPS2511EVM-141 |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 2500 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000861 oz |
For more information, please refer to datasheet
Documents
| TPS2511DGNR Datasheet |
More Information
The TPS2511 device is a USB-dedicated charging port (DCP) controller and current-limiting power switch. An auto-detect feature monitors USB data line voltage, and automatically provides the correct electrical signatures on the data lines to charge compliant devices among the following dedicated charging schemes:
