Texas Instruments
TPS2511QDGNQ1
TPS2511QDGNQ1
Regular price
$0.61 USD
Regular price
Sale price
$0.61 USD
Unit price
per
Couldn't load pickup availability

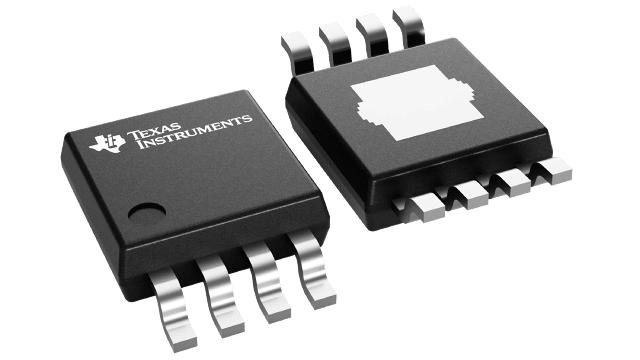

TPS2511QDGNQ1 Texas Instruments - Yeehing Electronics
Automotive catalog USB dedicated charging port controller and current limiting power switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.951 |
| 100 — 249 | 1.611 |
| 250 — 999 | 1.158 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Number of Outputs | 1 Output |
| Output Current | 2.7 A |
| Current Limit | 2.7 A |
| On Resistance - Max | 70 mOhms |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-8 |
| Series | TPS2511-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Tube |
| Product | USB Power Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 80 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000861 oz |
For more information, please refer to datasheet
Documents
| TPS2511QDGNQ1 Datasheet |
More Information
The TPS2511-Q1 is a USB dedicated charging port (DCP) controller and current limiting power switch. An auto-detect feature monitors USB data line voltage, and automatically provides the correct electrical signatures on the data lines to charge compliant devices among the following charging schemes: Divider DCP, required to apply 2.7 V on D+ and 2.0 V on D– or 2.0 V on D+ and 2.7 V on D–;BC1.2 DCP, required to short D+ to D–;1.2 V on both D+ and D–.
