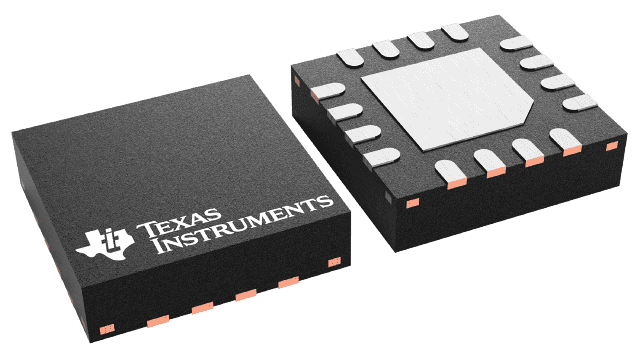

TPS2540ARTET Texas Instruments - Yeehing Electronics

USB charging port controller and 2.5A power switch

Pricing (USD)

Quantity	Unit Price
1 — 99	1.617
100 — 249	1.336
250 — 999	0.96
1,000 +	0.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	2.5 A
Current Limit	2.7 A
On Resistance - Max	120 mOhms
Operating Supply Voltage	4.5 V to 5.5 V
Supply Voltage - Min	4.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-16
Series	TPS2540A
Packaging	Reel
Product	USB Power Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	250
Subcategory	Switch ICs

For more information, please refer to datasheet

Documents

TPS2540ARTET Datasheet

More Information

The TPS2540/40A and TPS2541/41A are a combination of current-limited USB port power switch with a USB 2.0 high-speed data line (D+/D-) switch and a USB charging port identification circuit. Applications include notebook PCs and other intelligent USB host devices. The wide bandwidth (2.6 GHz) data-line switch also features low capacitance and low on resistance, allowing signals to pass with minimum edge and phase distortion. The TPS2540/40A/41/41A monitors D+ and D-, providing the correct hand-shaking protocol with compliant client devices.
