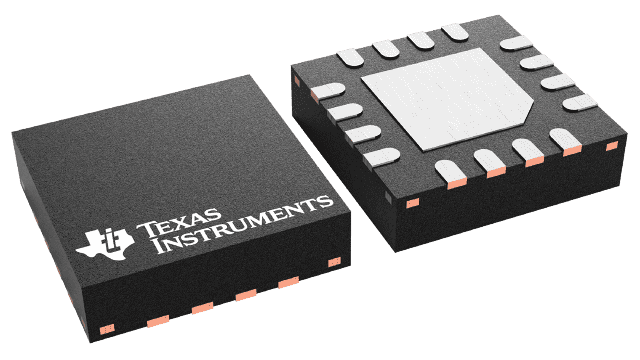

TPS2544RTET Texas Instruments - Yeehing Electronics
USB charging port controller with CDP/SDP auto switch and 2.5A power switch
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.156 |
100 — 249 | 0.889 |
250 — 999 | 0.655 |
1,000 + | 0.33 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Switch ICs - Power Distribution |
RoHS | Y |
Type | High Side |
Number of Outputs | 1 Output |
Output Current | 2.5 A |
Current Limit | 2.7 A |
On Resistance - Max | 120 mOhms |
Operating Supply Voltage | 4.5 V to 5.5 V |
Supply Voltage - Min | 4.5 V |
Supply Voltage - Max | 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-16 |
On Time - Max | 4 ms |
Off Time - Max | 3 ms |
Series | TPS2544 |
Packaging | Reel |
Product | USB Power Switches |
Brand | Texas Instruments |
Development Kit | TPS2544EVM-064 |
Moisture Sensitive | Yes |
Product Type | Power Switch ICs - Power Distribution |
Factory Pack Quantity | 250 |
Subcategory | Switch ICs |
Unit Weight | 0.000970 oz |
For more information, please refer to datasheet
Documents
TPS2544RTET Datasheet |
More Information
The TPS2544 is a USB charging port controller and power switch with an integrated USB 2.0 high-speed data line (D+/D–) switch. TPS2544 provides the electrical signatures on D+/D– to support charging schemes listed under device feature section. TI tests charging of popular mobile phones, tablets and media devices with the TPS2544 to ensure compatibility with both BC1.2 compliant and non-compliant devices. In addition to charging popular devices, TPS2544 also supports system wake up (from S3) with a mouse/keyboard; both low speed and full speed are supported.
