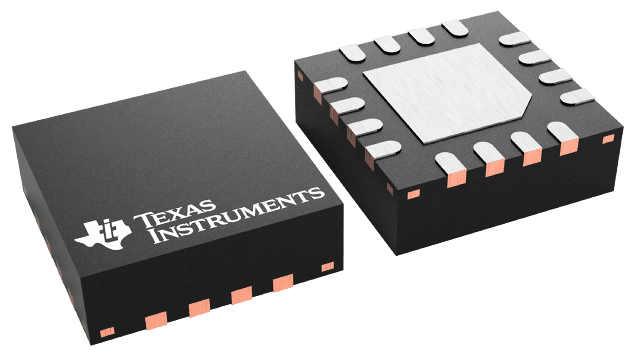

TPS2546RTER Texas Instruments - Yeehing Electronics

USB charging port controller with CDP/SDP auto swtich and 2.5A power switch with load detection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.568
100 — 249	0.437
250 — 999	0.322
1,000 +	0.16

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Switch ICs - Power Distribution
RoHS	Y
Type	High Side
Number of Outputs	1 Output
Output Current	2.7 A
Current Limit	2.5 A
On Resistance - Max	73 mOhms
Operating Supply Voltage	4.5 V to 5.5 V
Supply Voltage - Min	4.5 V
Supply Voltage - Max	5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	WQFN-16
Series	TPS2546
Packaging	Reel
Product	Power Switches
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Power Switch ICs - Power Distribution
Factory Pack Quantity	3000
Subcategory	Switch ICs
Unit Weight	0.000663 oz

For more information, please refer to datasheet

Documents

TPS2546RTER Datasheet

More Information

The TPS2546 is a USB charging port controller and power switch with an integrated USB 2.0 high-speed data line (D+/D–) switch. TPS2546 provides the electrical signatures on D+/D– to support charging schemes listed under . TI tests charging of popular mobile phones, tablets, and media devices with the TPS2546 to ensure compatibility with both BC1.2 compliant, and non-BC1.2 compliant devices.
