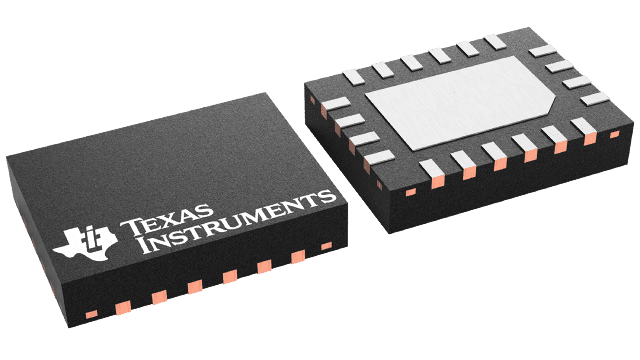

TPS254900IRVCRQ1 Texas Instruments - Yeehing Electronics
Automotive USB Charge port controller with short to BATT protection and droop compensation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.792 |
| 100 — 249 | 2.446 |
| 250 — 999 | 1.715 |
| 1,000 + | 1.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS254900-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Product | USB Power Controllers |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.001284 oz |
For more information, please refer to datasheet
Documents
| TPS254900IRVCRQ1 Datasheet |
More Information
The TPS254900-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream dc-dc converter, processor, or hub data lines.
