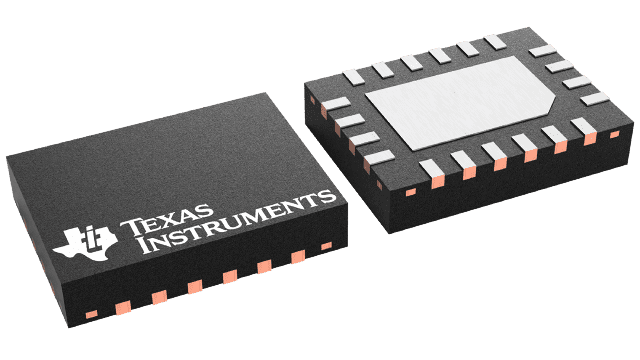

TPS254900IRVCTQ1 Texas Instruments - Yeehing Electronics
Automotive USB Charge port controller with short to BATT protection and droop compensation
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.264 |
100 — 249 | 2.86 |
250 — 999 | 2.005 |
1,000 + | 0.96 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Power Switch ICs - Power Distribution |
RoHS | Y |
Type | High Side |
Number of Outputs | 1 Output |
Output Current | 3 A |
Current Limit | 3.4 A |
On Resistance - Max | 77 mOhms |
Operating Supply Voltage | 4.5 V to 6.5 V |
Supply Voltage - Min | 4.5 V |
Supply Voltage - Max | 6.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-20 |
On Time - Max | 11 ms |
Off Time - Max | 5 ms |
Series | TPS254900-Q1 |
Qualification | AEC-Q100 |
Packaging | Reel |
Product | USB Power Controllers |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Power Switch ICs - Power Distribution |
Factory Pack Quantity | 250 |
Subcategory | Switch ICs |
Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
TPS254900IRVCTQ1 Datasheet |
More Information
The TPS254900-Q1 device is a USB charging-port controller and power switch with short-to-battery protection. This feature provides protection on OUT, DM_IN and DP_IN. These three pins withstand voltage up to 18 V. The internal MOSFET turns off quickly when the short-to-battery condition occurs. Rapid turnoff is very important to protect the upstream dc-dc converter, processor, or hub data lines.
