Texas Instruments
TPS2559QWDRCRQ1
TPS2559QWDRCRQ1
Couldn't load pickup availability
TPS2559QWDRCRQ1 Texas Instruments - Yeehing Electronics
Automotive 1.2-4.7A adjustable ILIMIT, 2.5-6.5V, 13mΩ USB power switch, active-high
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.386 |
| 100 — 249 | 1.214 |
| 250 — 999 | 0.851 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Switch ICs - Power Distribution |
| RoHS | Y |
| Type | High Side |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |

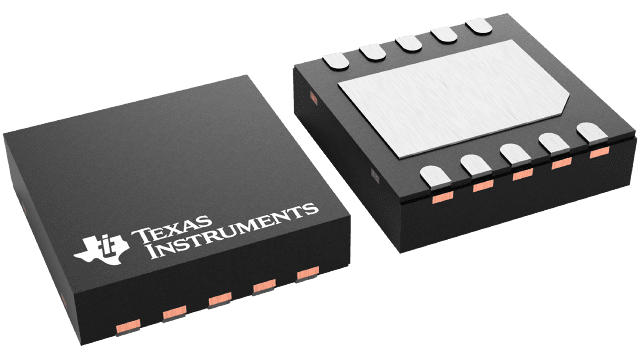

| Package / Case | VSON-10 |
| Series | TPS2559-Q1 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Product | Power Switches |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Power Switch ICs - Power Distribution |
| Factory Pack Quantity | 3000 |
| Subcategory | Switch ICs |
| Unit Weight | 0.000730 oz |
For more information, please refer to datasheet
Documents
| TPS2559QWDRCRQ1 Datasheet |
More Information
The TPS2559-Q1 power-distribution switch is intended for applications where a low resistance, precision current limit switch is required or heavy capacitive loads are encountered. The TPS2559-Q1 provides up to 5.5 A of continuous load current with a precise current limit set by a single resistor to ground. Output current is maintained at a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. During overload events the output current is limited to the level set by R(ILIM). If a persistent overload occurs, the device goes into thermal shutoff to prevent damage to the TPS2559-Q1.
