Texas Instruments

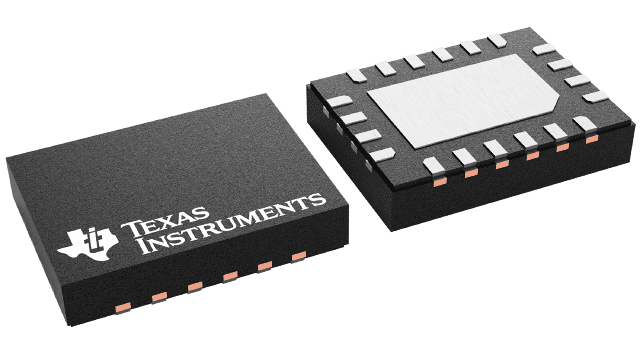

TPS25810ATWRVCRQ1
TPS25810ATWRVCRQ1
Couldn't load pickup availability
TPS25810ATWRVCRQ1 Texas Instruments - Yeehing Electronics
Automotive USB Type-C™ DFP controller and power switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.508 |
| 100 — 249 | 1.245 |
| 250 — 999 | 0.894 |
| 1,000 + | 0.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-20 |
| Series | TPS25810A-Q1 |
| Product | USB Controllers |
| Type | Type-C |
| Port Type | DFP |
| Standard | USB-C 1.1 |
| Speed | Super Speed |
| Supply Voltage - Min | 2.9 V |
| Supply Voltage - Max | 6.5 V |
| Operating Supply Current | 700 nA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.9 V to 6.5 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TPS25810ATWRVCRQ1 Datasheet |
More Information
The TPS25810A-Q1 device is a USB Type-C downstream-facing port (DFP) controller with an integrated 3-A rated USB power switch. The device monitors the Type-C configuration channel (CC) lines to determine when a USB device is attached. If an upstream-facing port (UFP) device is attached, it applies power to VBUS and communicate the selectable VBUS current-sourcing capability to the UFP via the pass-through CC line. If the UFP is attached using an electronically marked cable, it also applies VCONN power to the cable CC pin. The TPS25810A-Q1 can identify and report when Type-C audio or debug accessories are attached.
