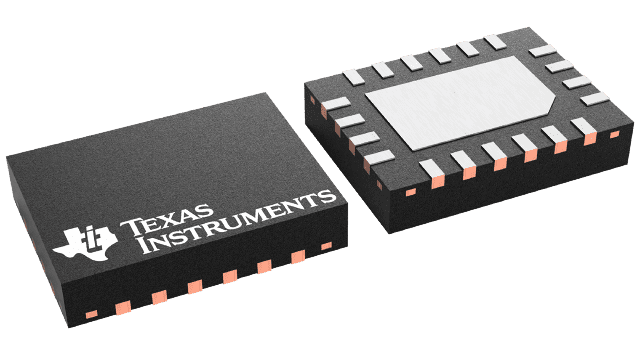

TPS25810RVCR Texas Instruments - Yeehing Electronics

USB Type-C™ source controller and 3A power switch with VCONN

Pricing (USD)

Quantity	Unit Price
1 — 99	1.045
100 — 249	0.804
250 — 999	0.592
1,000 +	0.30

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WQFN-20
Series	TPS25810
Product	USB Controllers
Type	Type-C
Port Type	DFP
Standard	USB-C 1.1
Speed	Super Speed
Supply Voltage - Min	2.9 V
Supply Voltage - Max	6.5 V
Operating Supply Current	700 nA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Brand	Texas Instruments
Interface Type	USB
Number of Ports	1 Port
Moisture Sensitive	Yes
Operating Supply Voltage	2.9 V to 6.5 V
Product Type	USB Interface IC
Protocol Supported	USB-C, USB 3.1, USB 2.0
Factory Pack Quantity	3000
Subcategory	Interface ICs
Tradename	USB Type-C
Unit Weight	0.001344 oz

For more information, please refer to datasheet

Documents

TPS25810RVCR Datasheet

More Information

The TPS25810 is a USB Type-C Downstream Facing Port (DFP) controller with an integrated 3-A rated USB power switch. The TPS25810 monitors the Type-C Configuration Channel (CC) lines to determine when an USB device is attached. If an Upstream Facing Port (UFP) device is attached, the TPS25810 applies power to VBUS and communicates the selectable VBUS current sourcing capability to the UFP via the passthrough CC line. If the UFP is attached using an electronically marked cable, the TPS25810 also applies VCONN power to the cable CC pin. The TPS25810 also identifies when Type-C audio or debug accessories are attached.
