Texas Instruments
TPS25810TWRVCRQ1
TPS25810TWRVCRQ1
Couldn't load pickup availability

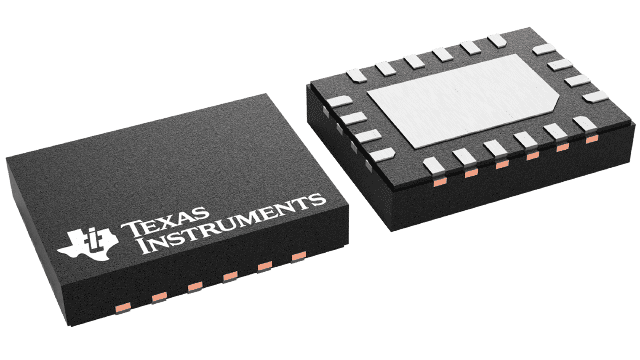

TPS25810TWRVCRQ1 Texas Instruments - Yeehing Electronics
Automotive USB Type-C™ Rev 1.2 DFP controller and power switch with load detection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.442 |
| 100 — 249 | 1.264 |
| 250 — 999 | 0.886 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-20 |
| Series | TPS25810-Q1 |
| Product | USB Controllers |
| Type | Type-C |
| Port Type | DFP |
| Standard | USB-C 1.1 |
| Speed | Super Speed |
| Supply Voltage - Min | 2.9 V |
| Supply Voltage - Max | 6.5 V |
| Operating Supply Current | 700 nA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Number of Ports | 1 Port |
| Development Kit | TPS25810EVM-745 |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.9 V to 6.5 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TPS25810TWRVCRQ1 Datasheet |
More Information
The TPS25810-Q1 device is a USB Type-C downstream-facing port (DFP) controller with an integrated 3-A rated USB power switch. The TPS25810-Q1 device monitors the Type-C configuration channel (CC) lines to determine when a USB device is attached. If an upstream-facing port (UFP) device is attached, the TPS25810-Q1 device applies power to VBUS and communicates the selectable VBUS current-sourcing capability to the UFP via the pass-through CC line. If the UFP is attached using an electronically marked cable, the TPS25810‑Q1 device also applies VCONN power to the cable CC pin. The TPS25810-Q1 device also identifies when Type-C audio or debug accessories are attached.
