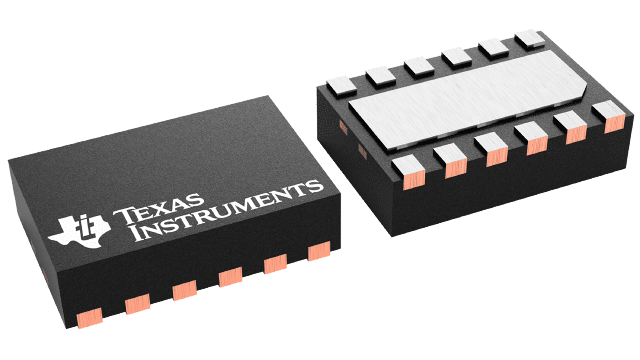

TPS25820DSST Texas Instruments - Yeehing Electronics

USB Type-C™ source controller and 1.5A power switch with VCONN

Pricing (USD)

Quantity	Unit Price
1 — 99	1.2
100 — 249	0.923
250 — 999	0.68
1,000 +	0.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WSON-12
Series	TPS25820
Product	USB Controllers
Type	Type-C
Port Type	DFP
Standard	USB-C 1.1
Speed	Super Speed
Data Rate	-
Supply Voltage - Min	4.5 V
Supply Voltage - Max	5.5 V
Operating Supply Current	310 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Brand	Texas Instruments
Development Kit	TPS25820EVM-835
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 5.5 V
Product Type	USB Interface IC
Factory Pack Quantity	250
Subcategory	Interface ICs
Tradename	USB Type-C
Unit Weight	0.000638 oz

For more information, please refer to datasheet

Documents

TPS25820DSST Datasheet

More Information

The TPS25820/21 is a USB Type-C source controller with an integrated 1.5 A-rated USB power switch. The TPS25820/21 monitors the Type-C configuration channel (CC) lines to determine when a USB sink is attached. If a sink is attached, the TPS25820/21 applies power to VBUS and communicates the selectable VBUS current sourcing capability to the sink via the pass through CC line. If the sink is attached with an electronically marked cable, the TPS25820 also applies VCONN power to the cable VCONN pin. The TPS25821 does not apply VCONN power and is for functions where VCONN is not needed such as USB 2.0 and data-less charging implementations.
