Texas Instruments
TPS25940ARVCR
TPS25940ARVCR
Regular price
$0.51 USD
Regular price
Sale price
$0.51 USD
Unit price
per
Couldn't load pickup availability

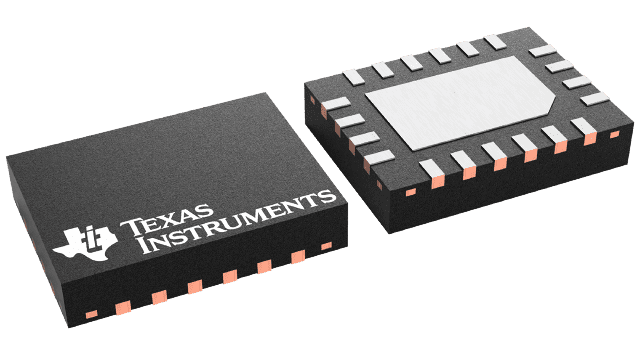

TPS25940ARVCR Texas Instruments - Yeehing Electronics
2.7-V to 18-V, 42mΩ, 0.6-5.2A eFuse with reverse current blocking and DevSleep support
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.626 |
| 100 — 249 | 1.343 |
| 250 — 999 | 0.965 |
| 1,000 + | 0.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Hot Swap Voltage Controllers |
| RoHS | Y |
| Product | Controllers & Switches |
| Current Limit | 5.2 A |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 2.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-20 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TPS25940A |
| Type | High Side |
| Brand | Texas Instruments |
| Development Kit | TPS25940EVM-635 |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 18 V |
| Product Type | Hot Swap Voltage Controllers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.005291 oz |
For more information, please refer to datasheet
Documents
| TPS25940ARVCR Datasheet |
More Information
The TPS25940 eFuse Power Switch is a compact, feature rich power management device with a full suite of protection functions, including a low power DevSleep™ mode that supports compliance with the SATA™ Device Sleep standard. The wide operating range allows control of many popular DC bus voltages. Integrated back to back FETs provide bidirectional current control making the device well suited for systems with load side holdup energy that must not drain back to a failed supply bus.
