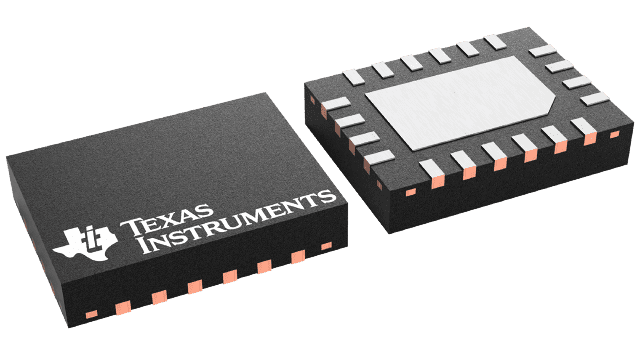

TPS25940LQRVCRQ1 Texas Instruments - Yeehing Electronics
2.7-V to 18-V, 42mΩ, 0.6-5.3A automotive eFuse with current monitor and short to battery protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.92 |
100 — 249 | 1.585 |
250 — 999 | 1.139 |
1,000 + | 0.60 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Hot Swap Voltage Controllers |
RoHS | Y |
Product | Power Distribution |
Current Limit | 5.3 A |
Supply Voltage - Max | 18 V |
Supply Voltage - Min | 2.7 V |
Number of Channels | 2 Channel |
Operating Supply Current | 202 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-20 |
Packaging | Reel |
Power Fail Detection | Yes |
Operating Temperature Range | - 40 C to + 125 C |
Series | TPS25940-Q1 |
Brand | Texas Instruments |
Input / Supply Voltage - Max | 18 V |
Input / Supply Voltage - Min | 2.7 V |
Moisture Sensitive | Yes |
Product Type | Hot Swap Voltage Controllers |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Part # Aliases | REEL |
For more information, please refer to datasheet
Documents
TPS25940LQRVCRQ1 Datasheet |
More Information
The TPS25940xx-Q1 eFuse Power Switches are compact, feature rich power management devices with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control making the device well suited for systems with load side holdup energy that must not drain back to a failed supply bus.
