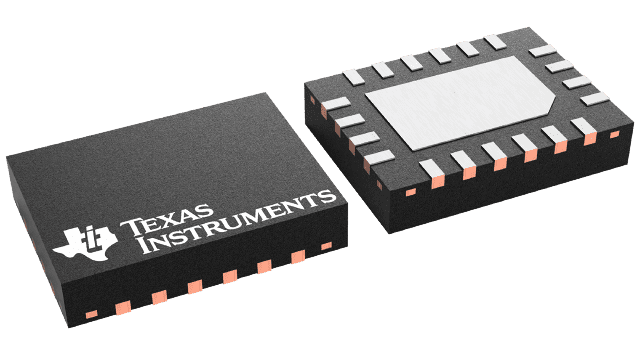

TPS25940LRVCR Texas Instruments - Yeehing Electronics

2.7-V to 18-V, 42mΩ, 0.6-5.2A eFuse with reverse current blocking and DevSleep support

Pricing (USD)

Quantity	Unit Price
1 — 99	1.626
100 — 249	1.343
250 — 999	0.965
1,000 +	0.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Hot Swap Voltage Controllers
RoHS	Y
Product	eFuse Power Switches
Current Limit	5.2 A
Supply Voltage - Max	18 V
Supply Voltage - Min	2.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-20
Packaging	Reel
Operating Temperature Range	- 40 C to + 85 C
Series	TPS25940L
Type	High Side
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 18 V
Product Type	Hot Swap Voltage Controllers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

TPS25940LRVCR Datasheet

More Information

The TPS25940 eFuse Power Switch is a compact, feature rich power management device with a full suite of protection functions, including a low power DevSleep™ mode that supports compliance with the SATA™ Device Sleep standard. The wide operating range allows control of many popular DC bus voltages. Integrated back to back FETs provide bidirectional current control making the device well suited for systems with load side holdup energy that must not drain back to a failed supply bus.
