Description

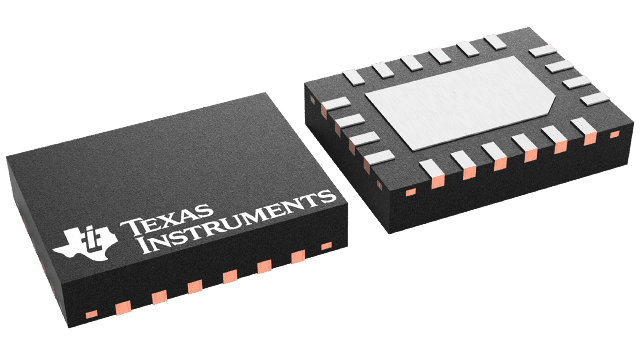

TPS25942ARVCT Texas Instruments - Yeehing Electronics
2.7-V to 18-V, 42mΩ, 0.6-5.2A eFuse with reverse current blocking, IMON and PG
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.759 |
| 100 — 249 | 1.542 |
| 250 — 999 | 1.081 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Hot Swap Voltage Controllers |
| RoHS | Y |
| Current Limit | 5.2 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | TPS25942A |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Hot Swap Voltage Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001037 oz |
For more information, please refer to datasheet
Documents
| TPS25942ARVCT Datasheet |
More Information
The TPS25942, TPS25944 eFuse Power MUX is a compact, feature rich power management device with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control making the device well suited for power muxing and systems with multiple power sources.
