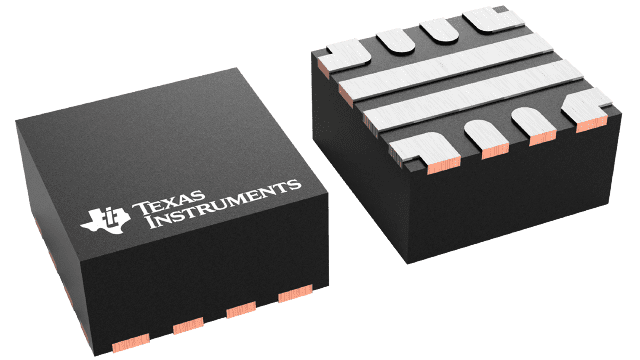

TPS259472LRPWR Texas Instruments - Yeehing Electronics
2.7-V to 23-V, 28-mΩ, 5.5-A eFuse with integrated reverse polarity protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.946 |
100 — 249 | 0.728 |
250 — 999 | 0.536 |
1,000 + | 0.27 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPS259472LRPWR Datasheet |
More Information
The TPS25947xx family of eFuses is a highly integrated circuit protection and power management solution in a small package. The devices provide multiple protection modes using very few external components and are a robust defense against overloads, short-circuits, voltage surges, reverse polarity and excessive inrush current. With integrated back-to-back FETs, reverse current flow from output to input is blocked at all times, making the devices well suited for power MUX/ORing applications as well as systems which need load side energy hold up storage in case input power supply fails. The devices use linear ORing based scheme to ensure almost zero DC reverse current and emulate ideal diode behavior with minimum forward voltage drop and power dissipation.
