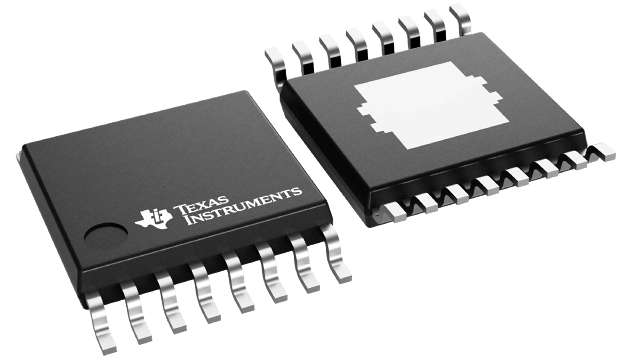

TPS26600PWPT


YeeHing #: Y012-TPS26600PWPT
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS26600PWPT Texas Instruments - Yeehing Electronics

4.2-V to 60-V, 150mΩ, 0.1-2.23A eFuse with integrated input reverse polarity protection

Pricing (USD)

Quantity Unit Price
1 — 99 2.477
100 — 249 2.17
250 — 999 1.521
1,000 + 0.86

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Hot Swap Voltage Controllers
RoHS Y
Product Controllers & Switches
Current Limit 2 A
Supply Voltage - Max 55 V
Supply Voltage - Min 4.2 V
Number of Channels 1 Channel
Operating Supply Current 300 uA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case HTSSOP-16
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Series TPS2660
Brand Texas Instruments
Input / Supply Voltage - Max 55 V
Input / Supply Voltage - Min 4.2 V
Development Kit TPS26600-02EVM
Moisture Sensitive Yes
Product Type Hot Swap Voltage Controllers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs
Unit Weight 0.002476 oz

For more information, please refer to datasheet

Documents

TPS26600PWPT Datasheet

More Information

The TPS2660x devices are compact, feature rich high voltage eFuses with a full suite of protection features. The wide supply input range of 4.2 to 60 V allows control of many popular DC bus voltages. The device can withstand and protect the loads from positive and negative supply voltages up to ±60 V. Integrated back to back FETs provide reverse current blocking feature making the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source and device protection are provided with many adjustable features including overcurrent, output slew rate and overvoltage, undervoltage thresholds. The internal robust protection control blocks along with the high voltage rating of the TPS2660x helps to simplify the system designs for Surge protection.
