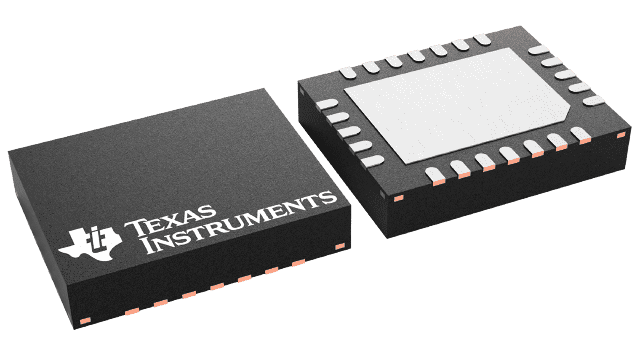

TPS26600RHFR Texas Instruments - Yeehing Electronics
4.2-V to 60-V, 150mΩ, 0.1-2.23A eFuse with integrated input reverse polarity protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.27 |
100 — 249 | 1.989 |
250 — 999 | 1.395 |
1,000 + | 0.79 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Hot Swap Voltage Controllers |
RoHS | Y |
Product | Controllers & Switches |
Current Limit | 2 A |
Supply Voltage - Max | 55 V |
Supply Voltage - Min | 4.2 V |
Number of Channels | 1 Channel |
Operating Supply Current | 300 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-24 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Series | TPS2660x |
Brand | Texas Instruments |
Input / Supply Voltage - Max | 55 V |
Input / Supply Voltage - Min | 4.2 V |
Development Kit | TPS26600-02EVM |
Moisture Sensitive | Yes |
Pd - Power Dissipation | - |
Product Type | Hot Swap Voltage Controllers |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.002339 oz |
For more information, please refer to datasheet
Documents
TPS26600RHFR Datasheet |
More Information
The TPS2660x devices are compact, feature rich high voltage eFuses with a full suite of protection features. The wide supply input range of 4.2 to 60 V allows control of many popular DC bus voltages. The device can withstand and protect the loads from positive and negative supply voltages up to ±60 V. Integrated back to back FETs provide reverse current blocking feature making the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source and device protection are provided with many adjustable features including overcurrent, output slew rate and overvoltage, undervoltage thresholds. The internal robust protection control blocks along with the high voltage rating of the TPS2660x helps to simplify the system designs for Surge protection.
