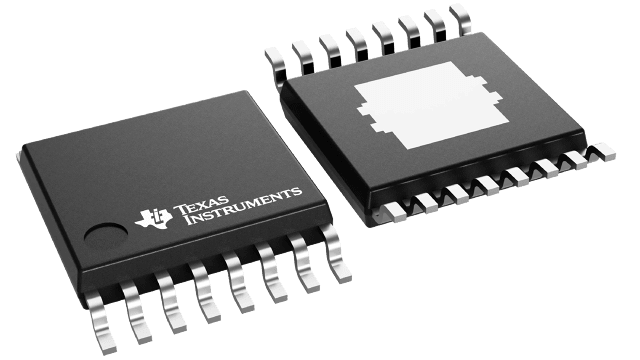

TPS26602PWPR Texas Instruments - Yeehing Electronics

4.2-V to 60-V, 150mΩ, 0.1-2.23A eFuse with integrated input reverse polarity protection

Pricing (USD)

Quantity	Unit Price
1 — 99	2.064
100 — 249	1.809
250 — 999	1.268
1,000 +	0.72

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS26602PWPR Datasheet

More Information

The TPS2660x devices are compact, feature rich high voltage eFuses with a full suite of protection features. The wide supply input range of 4.2 to 60 V allows control of many popular DC bus voltages. The device can withstand and protect the loads from positive and negative supply voltages up to ±60 V. Integrated back to back FETs provide reverse current blocking feature making the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source and device protection are provided with many adjustable features including overcurrent, output slew rate and overvoltage, undervoltage thresholds. The internal robust protection control blocks along with the high voltage rating of the TPS2660x helps to simplify the system designs for Surge protection.
