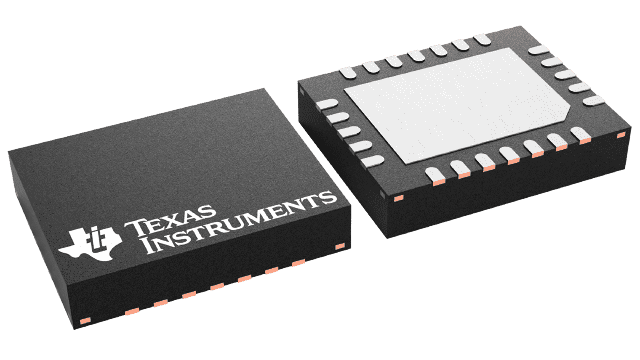

TPS26602RHFR Texas Instruments - Yeehing Electronics

4.2-V to 60-V, 150mΩ, 0.1-2.23A eFuse with integrated input reverse polarity protection

Pricing (USD)

Quantity	Unit Price
1 — 99	2.27
100 — 249	1.989
250 — 999	1.395
1,000 +	0.79

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Hot Swap Voltage Controllers
RoHS	Y
Product	Power Distribution
Current Limit	2 A
Supply Voltage - Max	55 V
Supply Voltage - Min	4.2 V
Number of Channels	1 Channel
Operating Supply Current	300 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VQFN-24
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Series	TPS2660
Brand	Texas Instruments
Input / Supply Voltage - Max	55 V
Input / Supply Voltage - Min	4.2 V
Moisture Sensitive	Yes
Product Type	Hot Swap Voltage Controllers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

TPS26602RHFR Datasheet

More Information

The TPS2660x devices are compact, feature rich high voltage eFuses with a full suite of protection features. The wide supply input range of 4.2 to 60 V allows control of many popular DC bus voltages. The device can withstand and protect the loads from positive and negative supply voltages up to ±60 V. Integrated back to back FETs provide reverse current blocking feature making the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source and device protection are provided with many adjustable features including overcurrent, output slew rate and overvoltage, undervoltage thresholds. The internal robust protection control blocks along with the high voltage rating of the TPS2660x helps to simplify the system designs for Surge protection.
