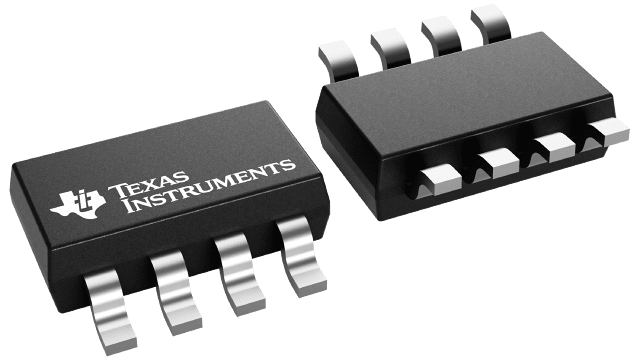

TPS26612DDFR


YeeHing #: Y012-TPS26612DDFR
Inventory: 4000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS26612DDFR Texas Instruments - Yeehing Electronics

50-V, universal 4-20-mA, ±20-mA current loop protector

Pricing (USD)

Quantity Unit Price
1 — 99 1.482
100 — 249 1.14
250 — 999 0.839
1,000 + 0.82

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS26612DDFR Datasheet

More Information

The TPS2661x is a compact, feature-rich, fully integrated current loop protector suitable for analog inputs, analog outputs, sensor transmitters, HART inputs, and UART IO protection. The device provides universal input protection for ±20 mA, 0 mA to 20 mA, and 4 mA–20 mA. Low RON values of 7.5 Ω minimizes drop in the current loop, thereby extending operating range and supporting operation even with lower voltage power supplies. The device can withstand and protect the loads from positive and negative supply voltages up to ±50 V. The MODE pin allows flexibility to enable 2x current limit through the device to enable proper start-up of two wire transmitters. Device is capable of operating from an external bipolar supply as low as ± 2.25 V to ±20 V. The device can also be powered from unipolar supplies as low as 3 V to 30 V. The TPS26610 and TPS26613 feature loop power mode to facilitate loop testing in un-powered state without ±Vs supplies.
