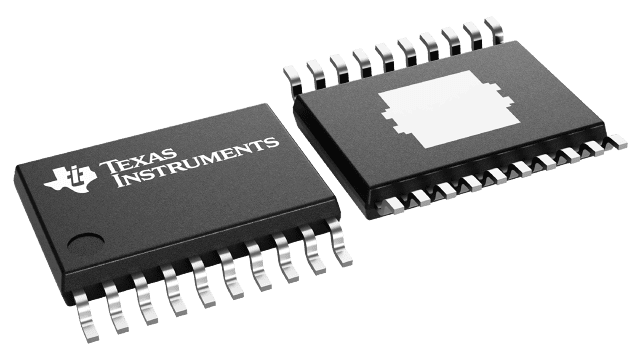

TPS26636PWPR


YeeHing #: Y012-TPS26636PWPR
Inventory: 4400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS26636PWPR Texas Instruments - Yeehing Electronics

4.5-V to 60-V, 31mΩ, 0.6-6A eFuse with output power limiting and surge protection

Pricing (USD)

Quantity Unit Price
1 — 99 2.864
100 — 249 2.51
250 — 999 1.76
1,000 + 0.99

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS26636PWPR Datasheet

More Information

The TPS2663x devices are easy to use, positive 60 V and 6-A eFuse with a 31-mΩ integrated FET. It features a B-FET driver to control an external N-channel FET in the system designs that require protection from input reverse polarity faults and reverse current blocking. The device incorporates robust protection features that simplify system designs requiring protection during system tests like IEC61000-4-5 industrial surge tests. The device features an adjustable output power limiting (PLIM) functionality that simplifies the system design requiring compliance in accordance to the standards like IEC61010-1 and UL1310. Additional protection features include adjustable overcurrent protection, fast short circuit protection, output slew rate control, overvoltage protection and undervoltage lockout.
