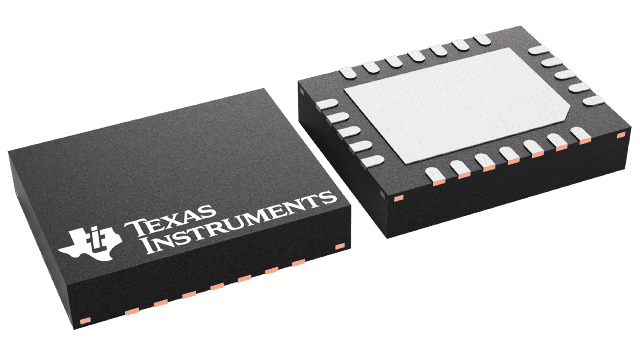

TPS272C45ARHFR Texas Instruments - Yeehing Electronics

36-V, 45-mΩ, 3-A, 2-ch, Industrial high-side switch with adjustable current limit

Pricing (USD)

Quantity	Unit Price
1 — 99	4.242
100 — 249	3.717
250 — 999	2.606
1,000 +	1.47

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS272C45ARHFR Datasheet

More Information

The TPS272C45 is a dual-channel smart high-side switch designed to meet the requirements of industrial control systems. The low on-resistance (RDS(on) of 45 mΩ) minimizes device power dissipation driving a wide range (100 mA to 3 A) of output load current. The device provides an additional low voltage supply (3.3 V to 5 V) input pin to minimize no-load power dissipation. The device integrates protection features such as thermal shut down, output clamp, and overcurrent limit. These features improve system robustness during fault events such as short circuit.
