TPS274160BRLHR


YeeHing #: Y012-TPS274160BRLHR
Inventory: 6400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

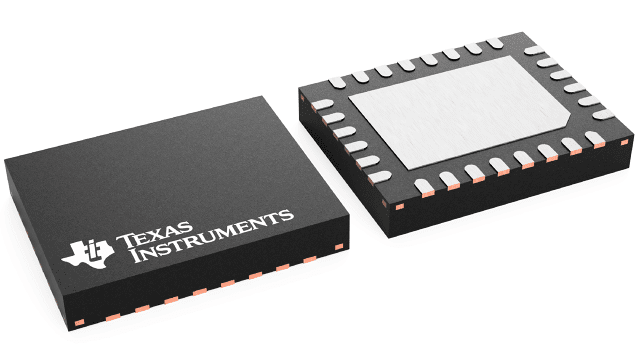

TPS274160BRLHR Texas Instruments - Yeehing Electronics

36-V, 160-mΩ, 1.35-A, 4-ch, Industrial high-side switch with adjustable current limit

Pricing (USD)

Quantity Unit Price
1 — 99 2.128
100 — 249 1.758
250 — 999 1.263
1,000 + 5.83

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS274160BRLHR Datasheet

More Information

The TPS274160 device is a smart high-side switch with four integrated 160-mΩ NMOS power FETs and a chargepump to drive the gates. The device offers robust protection and diagnostic features to drive various loads (inductive, capacitive, and resistive) such as low wattage bulbs, LEDs, relays, solenoids, heaters, and sub-modules. The part enables flexible, multi-channel output configurations through paralleling channels and is in a very small WQFN package to enable usage in space constrained applications.
