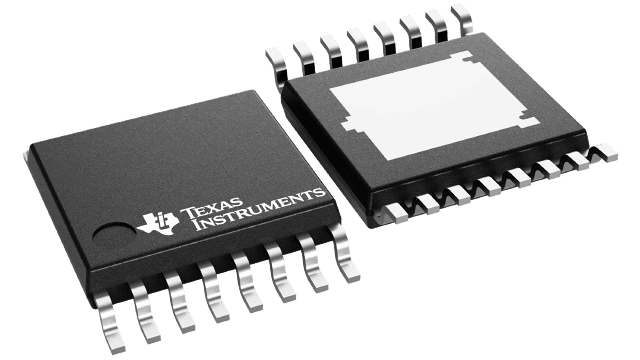

TPS2HB16AQPWPRQ1


YeeHing #: Y012-TPS2HB16AQPWPRQ1
Inventory: 7200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS2HB16AQPWPRQ1 Texas Instruments - Yeehing Electronics

40-V, 16-mΩ, 2-ch automotive smart high-side switch with adjustable current limit

Pricing (USD)

Quantity Unit Price
1 — 99 5.32
100 — 249 4.81
250 — 999 4.42
1,000 + 4.11

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

TPS2HB16AQPWPRQ1 Datasheet



More Information

The TPS2HB16-Q1 device is a dual-channel smart high-side switch intended for use in 12-V automotive systems. The device integrates robust protection and diagnostic features to ensure output port protection even during harmful events like short circuits in automotive systems. The device protects against faults through a reliable current limit, which, depending on device variant, is adjustable from 4.1 A to 48.5 A. The TPS2HB16F-Q1 device is designed to be able to drive 2x35W, 2x27W, and 2x21W bulbs due to its high fixed current limit of 60A.
